1. Understanding Potential Difference

Alright, let's dive into the electrifying world of potential difference! You might also know it as voltage. Now, the big question: can it swing both ways, positive and negative? The short answer is a resounding YES! But, of course, there's a bit more to the story than a simple yes or no. Think of it like temperature. We can have positive temperatures (nice and warm!) and negative temperatures (brrr, freezing!). Potential difference operates in a somewhat similar manner.

Essentially, potential difference is all about the difference in electrical potential energy between two points in a circuit. This difference is what drives the flow of electric current. Imagine a water slide. The higher the starting point (higher potential energy), the faster you go down. Similarly, a larger potential difference results in a stronger electric current. It is important to remember that potential is always relative. It is a comparison between two points, and without that comparison, the value means very little.

The sign, positive or negative, tells us which point has higher electrical potential. If point A has a higher potential than point B, then the potential difference between A and B is positive. Conversely, if point A has a lower potential than point B, the potential difference is negative. Think of it like climbing a hill. If you start at the bottom and go to the top, your change in height is positive. If you start at the top and go to the bottom, your change in height is negative. Same idea with potential difference!

So, the next time you're tinkering with electronics or just thinking about circuits, remember that potential difference isn't just some abstract concept. It's a real, measurable quantity that can be either positive or negative, depending on the relative electrical potential of the points you're considering. And understanding that sign is key to understanding how electricity flows! The value provides insight into the direction that current will flow between two points.

Potential Difference

The Positive Side of Potential Difference

2. Exploring Positive Voltage

Let's say you have a 1.5V battery. The positive terminal, by definition, has a higher electrical potential than the negative terminal. When you measure the potential difference between the positive and negative terminals using a multimeter, you'll get a positive reading (around +1.5V). This positive potential difference indicates that electrons want to flow from the negative terminal (where they are in abundance) to the positive terminal (where they are needed). They are essentially trying to achieve equilibrium. It's like rolling a ball down a hill; it naturally rolls from high potential energy to low potential energy.

In circuit diagrams, we often designate a reference point as "ground," which is considered to have zero potential. Voltages at other points in the circuit are then measured relative to this ground. If a point in the circuit has a positive voltage relative to ground, it means it has a higher electrical potential than ground. This is a crucial concept for understanding how voltage dividers and other circuits function. A positive voltage, relative to ground, simply describes a higher electric potential at that point within a circuit.

Positive potential differences are the workhorses of electrical circuits. They power our devices, light up our homes, and generally make modern life possible. Without a positive potential difference to drive the flow of current, your phone would be a useless brick, and your lights would remain stubbornly off. Positive potentials are what allows electrical components to do work.

Think of common household items, such as outlets. When you plug in an item, it draws power from the electrical current, which occurs because of the potential difference, also referred to as voltage. In North America, most standard outlets have a voltage of around 120V, while in other places, outlets might have 220-240V. These are positive values that enable the current to flow.

What Is Electricity? SparkFun Learn

The Negative Side of Potential Difference

3. Delving into Negative Voltage

So, if positive potential difference is all about electrons flowing from negative to positive, what's the deal with negative potential difference? Well, it's simply the opposite scenario. Imagine you're defining the potential difference as going from the positive terminal to the negative terminal. That's when you'd call it negative. Practically, this is more about how you measure or define the points of interest in your circuit. It is less about the physical reality of electron flow itself.

Negative potential differences are often encountered when discussing the direction of current flow. By convention, current is defined as the flow of positive charge. While electrons are the actual charge carriers in most circuits (and they are negatively charged), the convention remains the same. So, if electrons are flowing from point B to point A, we can say that the current is flowing from A to B, and the potential difference between A and B is negative. This may seem counterintuitive but is rooted in historical convention.

In operational amplifiers (op-amps), negative feedback is a crucial technique that utilizes negative potential differences. Negative feedback helps to stabilize the amplifier and improve its performance. It involves feeding a portion of the output signal back to the input with an inverted polarity (a negative sign). This creates a negative potential difference that counteracts the input signal, preventing oscillations and improving linearity. Negative feedback loops use this principle to keep the signal in a certain range.

Consider a scenario where you have two points in a circuit, X and Y. If you measure the voltage at point X relative to point Y and get a value of -5V, it means that point X has a lower electrical potential than point Y. In other words, if you were to connect a wire between X and Y, electrons would spontaneously flow from Y to X (trying to equalize the potential), even though we would conventionally say that current flows from X to Y (positive to negative). Again, this is about relative potential and how you are defining the direction that you are measuring it in.

Potential Difference Voltage

The Importance of Reference Points

4. Grounding and Potential

The concept of a "reference point," especially "ground," is vital when working with potential differences. Typically, we arbitrarily assign a potential of zero volts to the ground. All other potential differences are then measured relative to this ground. This helps standardize our measurements and avoids ambiguity.

Think of it like measuring altitude. We usually measure altitude relative to sea level. Sea level is our reference point, and we assign it an altitude of zero. Similarly, ground is our reference point for electrical potential, and we assign it a potential of zero volts. This makes it easier to compare and analyze potential differences throughout a circuit. Without a common reference, it's difficult to know whether two points are at the same potential or not. So we ground it. Simple enough.

However, it's important to remember that ground is not necessarily the same as earth ground. In many electronic circuits, ground is simply a convenient reference point that is arbitrarily chosen. It may or may not be connected to the actual earth. This is why it's crucial to understand the circuit diagram and identify the ground symbol before making any measurements.

Selecting a proper ground point for measurements helps to standardize measurements in complex circuits. A complex design can often be simplified by assigning a grounding point, and creating a system for measuring the various components relative to the common ground. As a best practice, remember the importance of setting a ground, and measuring the potential to the ground from all points.

How To Calculate Resistance Using Potential Difference And Current At

Practical Applications and Measurements

5. Using Multimeters and More

Alright, enough theory. Let's get practical! How do we actually measure potential difference in the real world? The trusty multimeter is our best friend here. A multimeter is an incredibly useful tool for measuring voltage, current, and resistance in electrical circuits. To measure potential difference, you'll use the voltmeter function of the multimeter. You'll connect the meter's probes to two points in the circuit, and the meter will display the potential difference between those points. Simple as that!

When using a multimeter to measure potential difference, pay attention to the polarity of the probes. The red probe is typically connected to the point with higher potential, while the black probe is connected to the point with lower potential. If you reverse the probes, the multimeter will still display the potential difference, but it will have a negative sign. This is because you're essentially measuring the potential difference in the opposite direction. Don't be scared! Just know that you switched them around.

It's also important to choose the correct voltage range on the multimeter. If you're measuring a small potential difference (e.g., a few millivolts), you'll want to select a low voltage range to get an accurate reading. If you're measuring a large potential difference (e.g., hundreds of volts), you'll need to select a higher voltage range to avoid damaging the multimeter. Always start with the highest range if you are unsure about the potential, and then decrease until a reasonable reading is achieved.

Potential difference measurements are crucial for troubleshooting electrical circuits. If a circuit isn't working properly, measuring potential differences at various points can help you identify the problem. For example, if you're not getting any voltage at a particular component, it could indicate a broken wire, a faulty connection, or a blown fuse. The multimeter never lies!

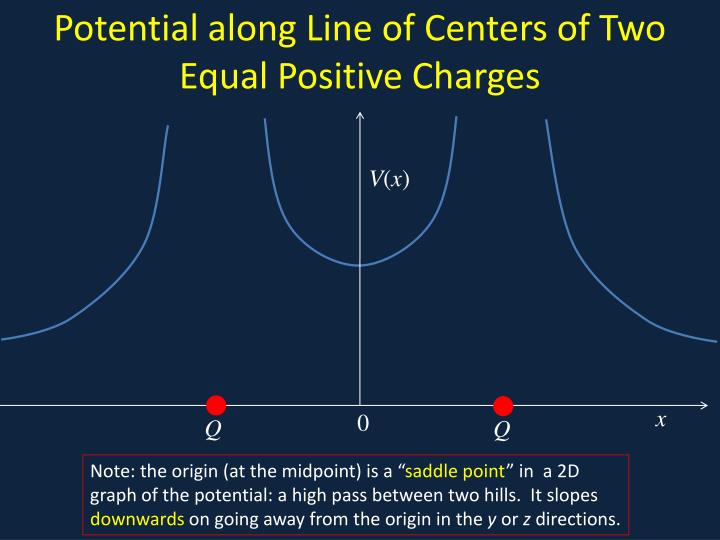

PPT Electric Potential II PowerPoint Presentation ID2335815

FAQ

6. Can potential difference be zero?

Absolutely! If two points in a circuit have the same electrical potential, the potential difference between them is zero. This doesn't necessarily mean there's no current flowing, but it does mean there's no "push" for the current to flow between those specific points. Think of it like two cups of water connected by a tube. If the water level is the same in both cups, there's no pressure difference, and the water won't flow between them.

7. Does the potential difference always cause current to flow?

Nope! While a potential difference can cause current to flow, it's not the only factor. You also need a closed circuit, meaning a complete path for the current to flow from one point to another. Think of it like a water pump connected to a pipe. The pump creates a pressure difference (analogous to potential difference), but the water won't flow unless the pipe forms a closed loop. If the pipe is cut or blocked, the water won't flow, even though the pump is still creating a pressure difference. The circuit has to be complete.

8. Is potential difference the same as electromotive force (EMF)?

These terms are often used interchangeably, but they're not exactly the same. EMF is the potential difference generated by a source of electrical energy, like a battery or a generator. Potential difference is the difference in electrical potential between any two points in a circuit. So, EMF is a specific type of potential difference, but not all potential differences are EMFs. EMF is the "push" created by the energy source, while the potential difference is the "push" across any two points.
