Decoding the Mystery

1. Understanding Your Motor's Needs

Choosing a motor controller can feel a bit like navigating a jungle. So many options, so many specifications! But don't worry, it's actually quite manageable once you break it down. Think of a motor controller as the brain that tells your motor what to do — how fast to spin, which direction to go, and when to stop. It's essential for any application that needs precise control over a motor.

First things first, you need to intimately know your motor. What type is it? Brushed DC, brushless DC (BLDC), stepper, or AC induction? Each type requires a different control strategy. Then, what's the voltage and current it requires to operate properly? This is crucial, because you don't want to accidentally fry your motor (or the controller!). Consider the operating environment too. Will it be hot, cold, dusty, or wet? You might need a controller with specific environmental protections.

Think about the load the motor will be driving. Is it a light load, or does it require significant torque? This affects the required current and the type of control needed. A simple fan, for instance, needs a lot less current than, say, a winch pulling a heavy load. Also, consider the desired speed range. Will it be running at a constant speed, or will it need to vary its speed frequently? This will influence the kind of control method you need. Don't forget about any feedback mechanisms you might want to use. Do you need to know the exact position or speed of the motor shaft? Encoders and other sensors can provide this information, but your controller needs to be able to interpret the data.

Finally, don't underestimate the importance of safety features. Overcurrent protection, overvoltage protection, and thermal shutdown are essential to prevent damage to the motor, the controller, and even yourself! Its like having a bodyguard for your electronic components. Also, consider any specific certifications or standards required for your application, such as UL or CE marking. You want to ensure your controller meets all the necessary safety and performance requirements. Believe me, skipping on safety is a headache waiting to happen. Trust me, you will thank me later.

Learning The Basics Of Motor Control Power Electronics News

The Different Flavors of Motor Controllers

2. Exploring Control Methods and Types

Motor controllers come in various shapes and sizes, each designed for specific tasks. Let's briefly explore the most common types. First, you have simple on/off controllers. These are basically switches that turn the motor on and off. They are the simplest and cheapest but offer no speed or torque control. Think of them as the caveman of motor controllers — functional, but not exactly sophisticated.

Next, we have variable speed controllers. These allow you to adjust the motor's speed, usually using Pulse Width Modulation (PWM). PWM rapidly switches the motor on and off, effectively varying the average voltage applied to the motor. This is a very common and versatile method. Then, there are servo controllers. These are designed for precise position control, often used in robotics and automation. They use feedback from encoders to ensure the motor reaches the desired position accurately.

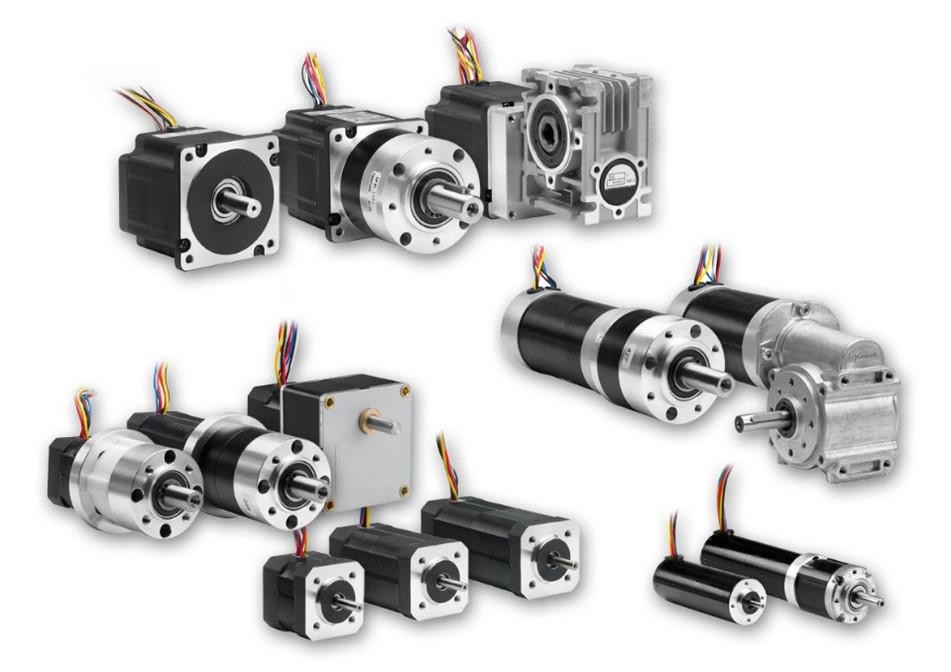

Brushless DC (BLDC) motor controllers are more complex, as they need to manage the commutation of the motor windings. They often use Hall effect sensors or encoders to determine the rotor position and switch the current to the appropriate windings. These controllers typically offer higher efficiency and smoother operation compared to brushed DC motor controllers. Stepper motor controllers are specifically designed to control stepper motors, which move in discrete steps. They send a sequence of pulses to the motor windings, causing the motor to rotate by a specific angle for each pulse.

Dont forget AC motor controllers! These are used for AC induction motors and typically involve more complex control strategies, such as vector control or variable frequency drives (VFDs). VFDs allow you to adjust the frequency of the AC power supplied to the motor, which in turn controls the motor's speed. Each type has its own set of advantages and disadvantages, so understanding your application's requirements is key to choosing the right one. Choosing the correct flavor ensures your system runs smoothly and efficiently.

Controlling Current In A Circuit

Key Specifications to Keep an Eye On

3. Voltage, Current, and Beyond

Just like buying a car, you need to pay attention to the specs of your motor controller. Voltage is the most crucial one. Make sure the controller's voltage rating matches your motor's voltage. Using a controller with a lower voltage rating will simply not work, while using one with a significantly higher voltage rating can damage your motor.

Current rating is equally important. The controller needs to be able to handle the maximum current that your motor will draw. It's always a good idea to choose a controller with a current rating that's slightly higher than your motor's maximum current, just to provide some headroom. This prevents overheating and ensures reliable operation. Consider the operating frequency, especially for PWM controllers. A higher frequency can result in smoother motor operation but may also increase switching losses.

Look into the control interface as well. How will you communicate with the controller? Common interfaces include PWM, analog voltage, serial (RS232, RS485), and CAN bus. Choose an interface that's compatible with your control system. Keep an eye on any built-in protection features, like overcurrent protection, overvoltage protection, undervoltage protection, and thermal shutdown. These features can save you a lot of headaches in the long run. They act as a safety net, preventing damage to your motor and controller in case of unexpected events.

Lastly, think about the physical dimensions and mounting options. Make sure the controller will fit in your enclosure and that it can be easily mounted. Consider the operating temperature range as well. If your application involves extreme temperatures, you'll need a controller that's rated for those conditions. Picking the right specs is not just about making things work — its about making them work reliably and safely for the long haul.

How To Choose And Setup A Sensorless Brushless DC Motor Controller

Practical Considerations

4. Real-World Application and Integration

Okay, you've got the theory down, but what about the real world? This is where things can get a little tricky. Think about the environment where the motor controller will be used. Is it a clean, temperature-controlled lab, or a dusty, hot factory floor? This will influence the type of enclosure you need and the level of protection required. If its a harsh environment, you might need a controller with an IP rating for dust and water resistance.

Consider the ease of integration with your existing system. Does the controller have the necessary communication interfaces and protocols? Can you easily program it to do what you need? Some controllers come with user-friendly software and development tools, which can save you a lot of time and effort. Is there a support community or documentation available? This can be invaluable when you run into problems. A good support network can be the difference between a quick fix and a frustrating week of troubleshooting.

Think about the long-term reliability of the controller. What's the expected lifespan? What's the warranty? A cheaper controller might seem appealing at first, but it could end up costing you more in the long run if it fails prematurely. Also, consider the availability of spare parts. Can you easily replace the controller if it breaks down? If not, you might want to choose a more common or widely available model. And most importantly, does the product provide the efficiency and performance you expect from datasheet, it could be marketing gimmick, or just a low quality product.

Finally, don't be afraid to ask for help! Talk to experienced engineers or suppliers. They can offer valuable advice and insights based on their own experiences. Sometimes, a quick phone call can save you hours of research and experimentation. Remember, choosing a motor controller is not just about picking the right specifications; it's about finding a solution that works seamlessly in your specific application. It's about matching the right tool to the right job, and doing it in a way that's both efficient and reliable. This can range from the controller form factor, communication protocols, and software libraries that can accelerate the development of your project.

Diagram Dc Motor Speed Controller How To Make Simple Moto

Budgeting and Future-Proofing Your Choice

5. Cost vs. Performance and Scalability

Let's face it, money matters. Setting a budget for your motor controller is crucial. But don't just go for the cheapest option you can find. Think about the long-term cost of ownership. A slightly more expensive controller with better efficiency and reliability might actually save you money in the long run by reducing energy consumption and maintenance costs.

Consider the total cost of integration, including any necessary software, cables, and accessories. These costs can add up quickly, so it's important to factor them into your budget. Dont forget the cost of your time. How much time will it take to set up and configure the controller? A controller with a user-friendly interface and good documentation can save you valuable time and effort. Think about scalability too. Will your needs change in the future? If so, you might want to choose a controller that can be easily upgraded or adapted to new requirements.

Look for controllers that offer modularity or expandability. This allows you to add new features or capabilities as needed, without having to replace the entire controller. Evaluate the energy efficiency of the controller. A more efficient controller will not only save you money on electricity bills but also reduce heat generation, which can improve the overall reliability of your system. Think about the lifecycle of your product. Will the controller still be supported in five or ten years? Choosing a controller from a reputable manufacturer with a long track record can provide some assurance of long-term support. Also, is it easy to replace if it fails, this will affect overall machine downtime and productivity.

Choosing a motor controller is an investment. By carefully considering your needs, exploring your options, and thinking about the long-term implications, you can make a choice that will serve you well for years to come. So, do your homework, ask questions, and don't be afraid to experiment. The right motor controller can make all the difference in the performance and reliability of your system. And always remember, a well-chosen controller is a happy controller (and a happy motor!).

Two Way Switch Motor Control YouTube

Frequently Asked Questions (FAQs)

6. Quick Answers to Common Queries

Q: What happens if I choose a motor controller with too low of a current rating?

A: If the controllers current rating is insufficient, it will likely overheat and possibly fail, potentially damaging both the controller and the motor. Its always better to have a controller with a slightly higher current rating than your motors maximum draw.

Q: Can I use a DC motor controller for an AC motor?

A: No, DC motor controllers are designed for DC motors, and AC motor controllers are designed for AC motors. Using the wrong type of controller can damage both the controller and the motor. Its like trying to put diesel in a gasoline car — it just won't work!

Q: How important is the operating temperature range of the motor controller?

A: The operating temperature range is critical, especially if your application involves extreme temperatures. If the controller is exposed to temperatures outside of its rated range, it can malfunction or fail. Always choose a controller that's rated for the expected operating environment, with some margin for safety.
